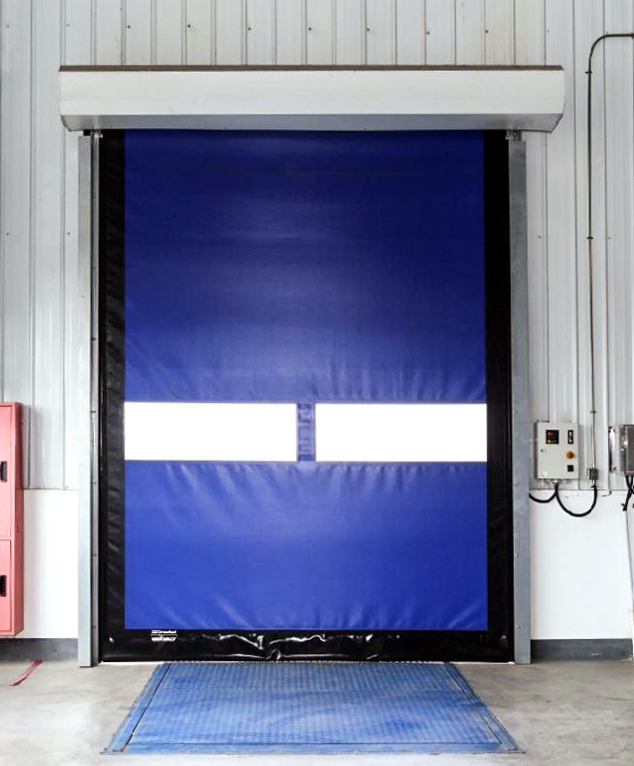

The High-speed automatic opening and closing of these rapid roll doors will provide valuable energy saving by maintaining the internal room temperature and also reduce contamination from airborne pollution and ingress of insects and vermin, essential in controlled warehouses and buildings.
| Model number | DIAN-PD2702 |
| Curtain | The segmented curtain is made of high-density polyester fiber (thickness 0.8mm ), and the transparent window is fully transparent PVC film (thickness 1.5mm) |
| Gantry structure | Formed by laser cutting once |
| Application | Industrial door |
| Surface treatment | Finished |
| Drive system | Drive dedicated motor power: 0.55-2.2kw; voltage 120V/220V/380V |
| Motor | Servo motor |
| Control system | The IP55 box is compatible with various commonly used protection devices and can be controlled by remote control. The overall use of PLC digital programming enables the safe passage of personnel vehicles and articles. Parking manual lever for easy opening or closing. |
| Speed | Upward 0.8~1.5 m/s, down 0.6~1.0 m/s, and the inverter can adjust the required uplink and downlink speed according to actual needs. |
| Dimensions | |
| Curtain thickness | 0.8mm~1.5mm |
| Door size | Customized |
| Max size for the door | W8*H8m |
| Single Track | ≥50cm |
| Double Track | ≤38cm |
| Material | |
| Curtain Material | PVC |
| Accessories Material | Galvanized steel/Stainless steel |
| Packing & Delivery | |
| Packing | Plastic Protection Foam between each section. Wooden case or carton packing |
| Lead time | 15~30 days after receiving the deposit |
| MOQ | 1 set |
