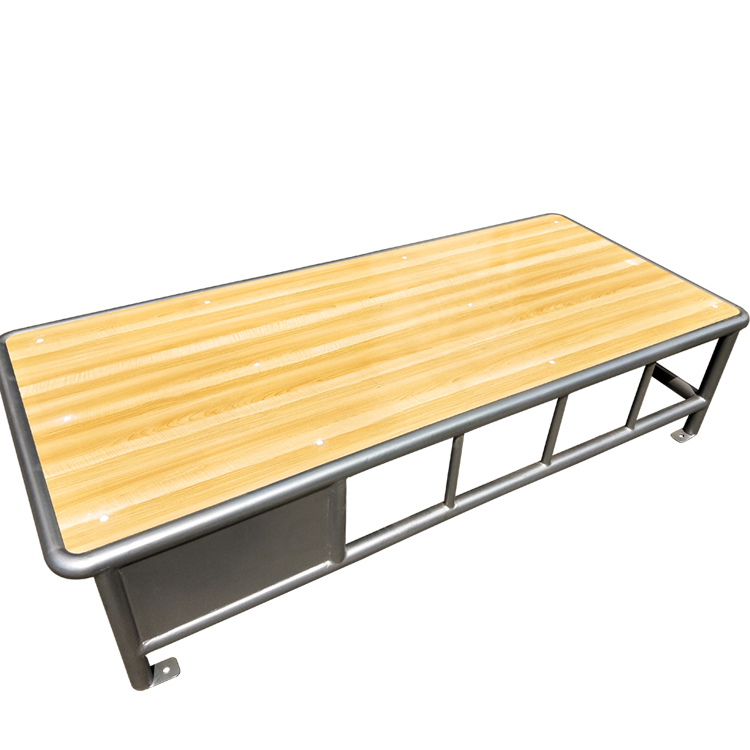

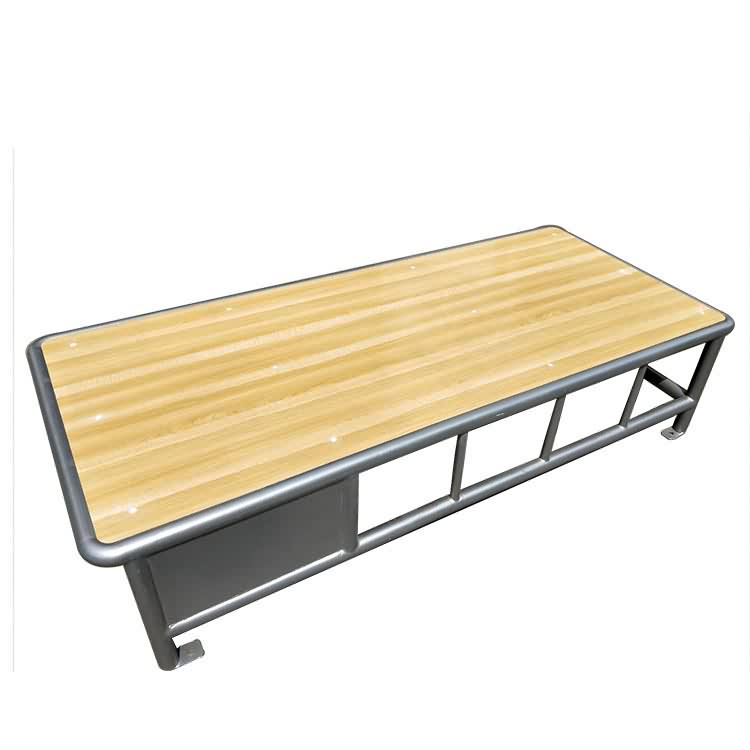

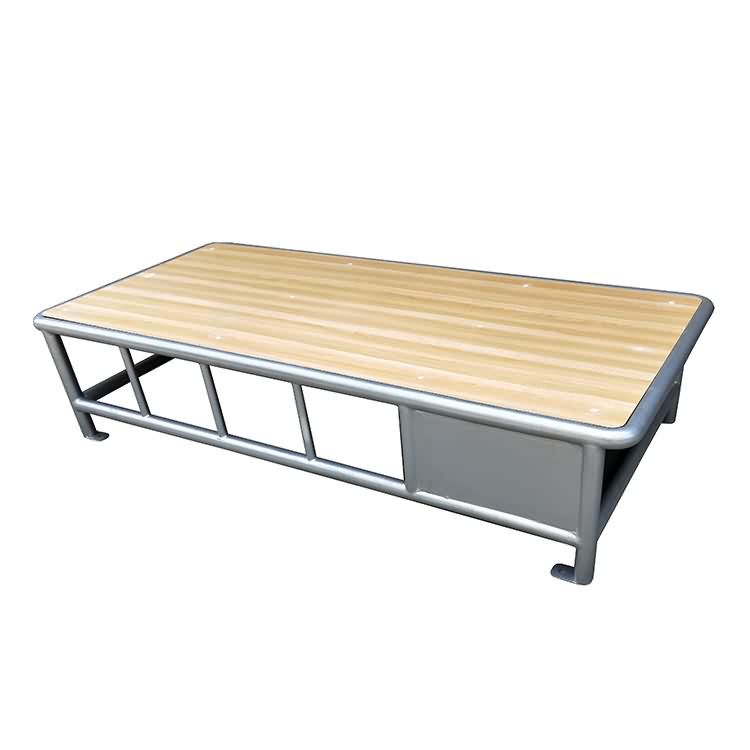

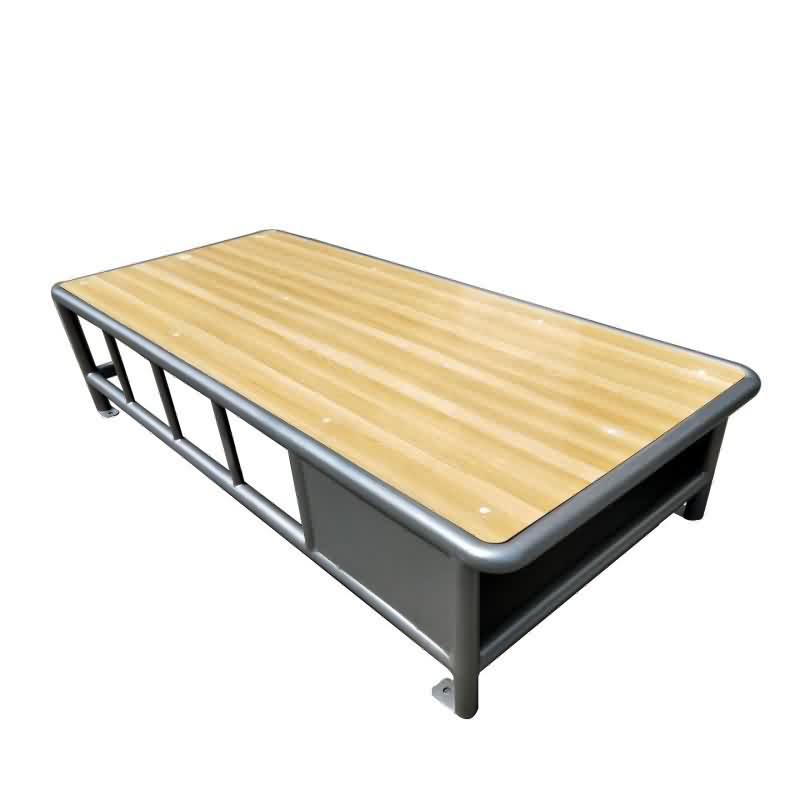

Jail bed is Y shaped-bed consisting of bed board, bedstock (including stand column, bedplate frame, reinforced beam and lower separator ), bed box, side plate, fixed connecting pieces and etc.
The bed plate is constructed from 20mm thick pine board and connected with bolts, the other parts are constructed from steel.
All fixed connections are not above the outer surface of the structure, and all exposed parts are processed by chamfering and other smooth processes.
The surface of bed plate is antiseptic with varnish,and other metal parts are painted.
| Model number | DIAN-JB2001 |
| Material | |
| Raw material | Pine and Carbon steel |
| Dimensions | |
| Overall dimension | 2000mm（L）*900mm(W)*440mm(H) |

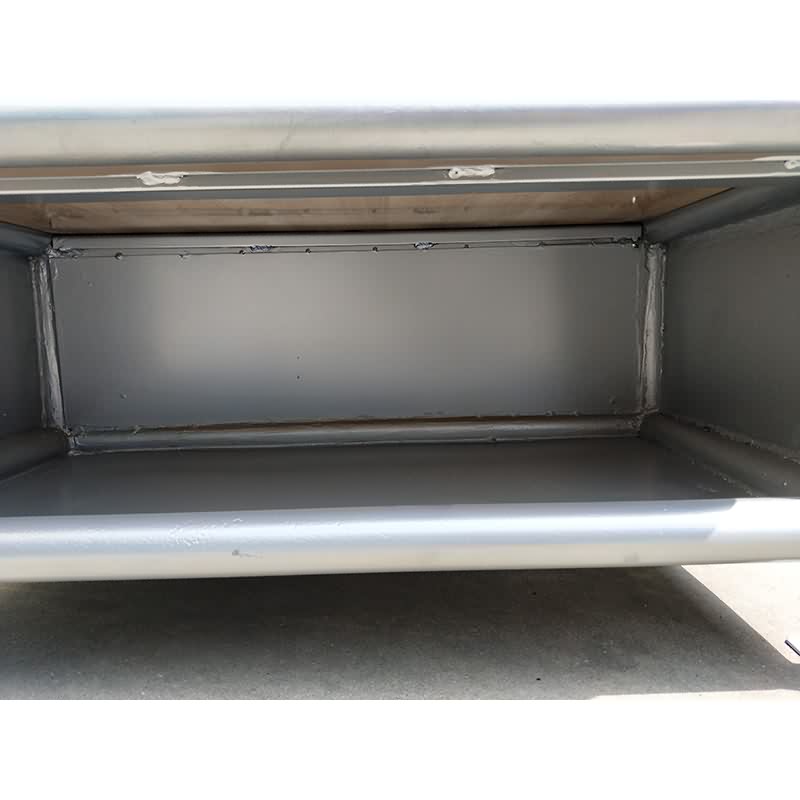

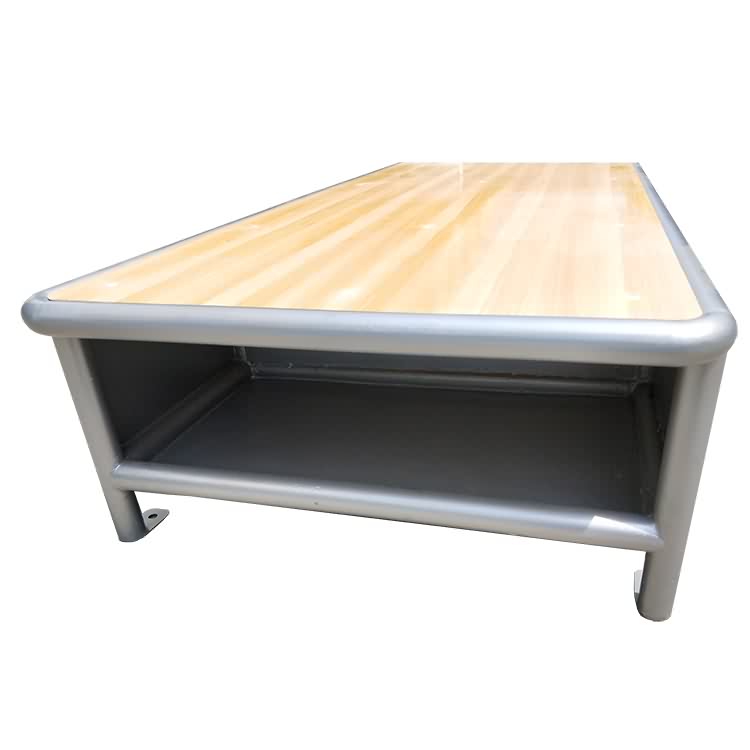

| Bed box | 500mm(D)*880mm(W)*340mm(H) |
| Pine board thickness | 20mm |
| Side plate | 100mm above the ground |
| The foot | Fixed with M10 retaining bolts with ground |
| Surface treatment | Finished |
| Qualifications | By Ministry of Public Security |
| Security Performance | Super structure and enhances the safety of the prison |
